IUSL - Isolated USB Serial Link

IUSL - Isolated USB Serial Link

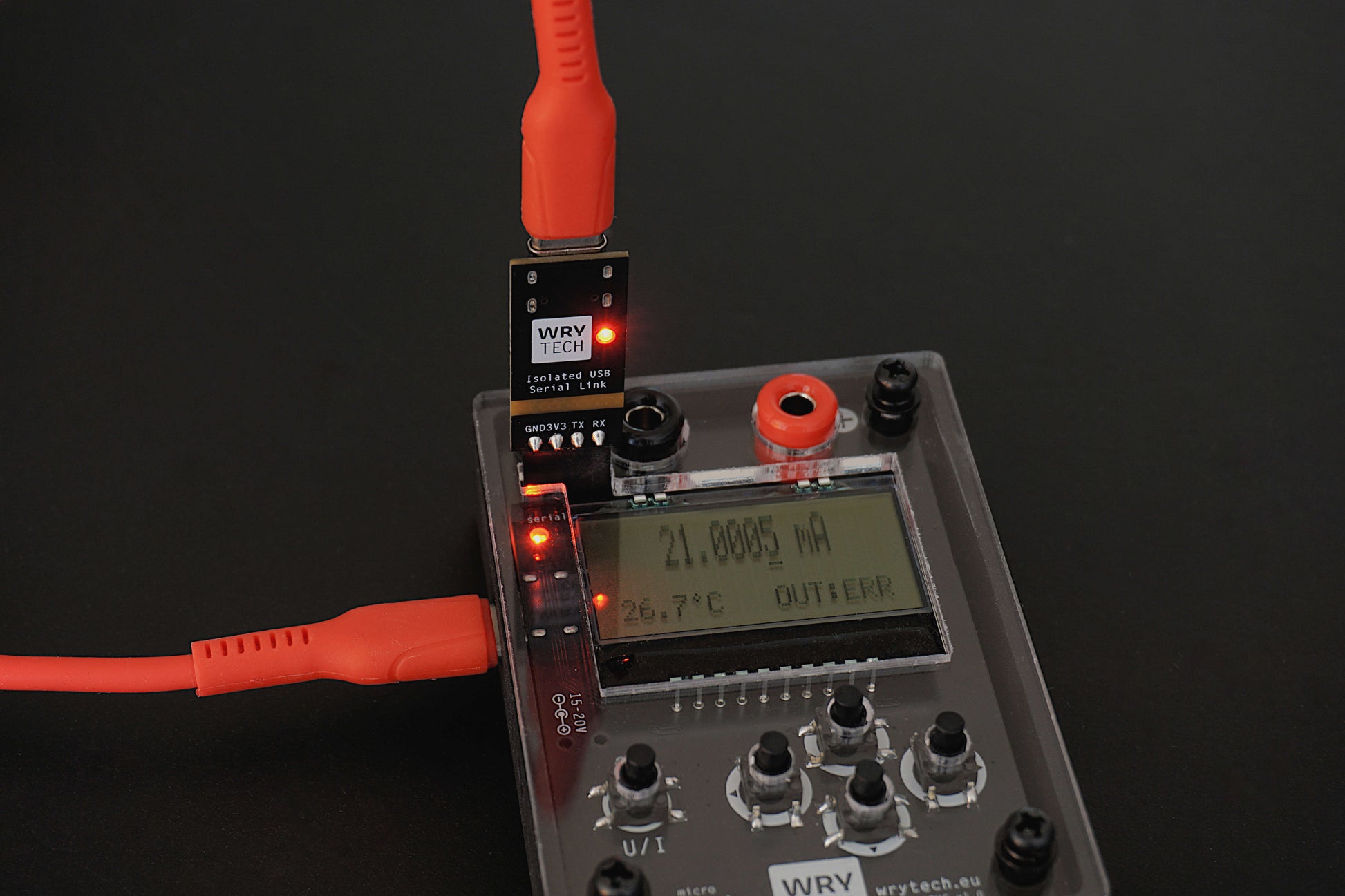

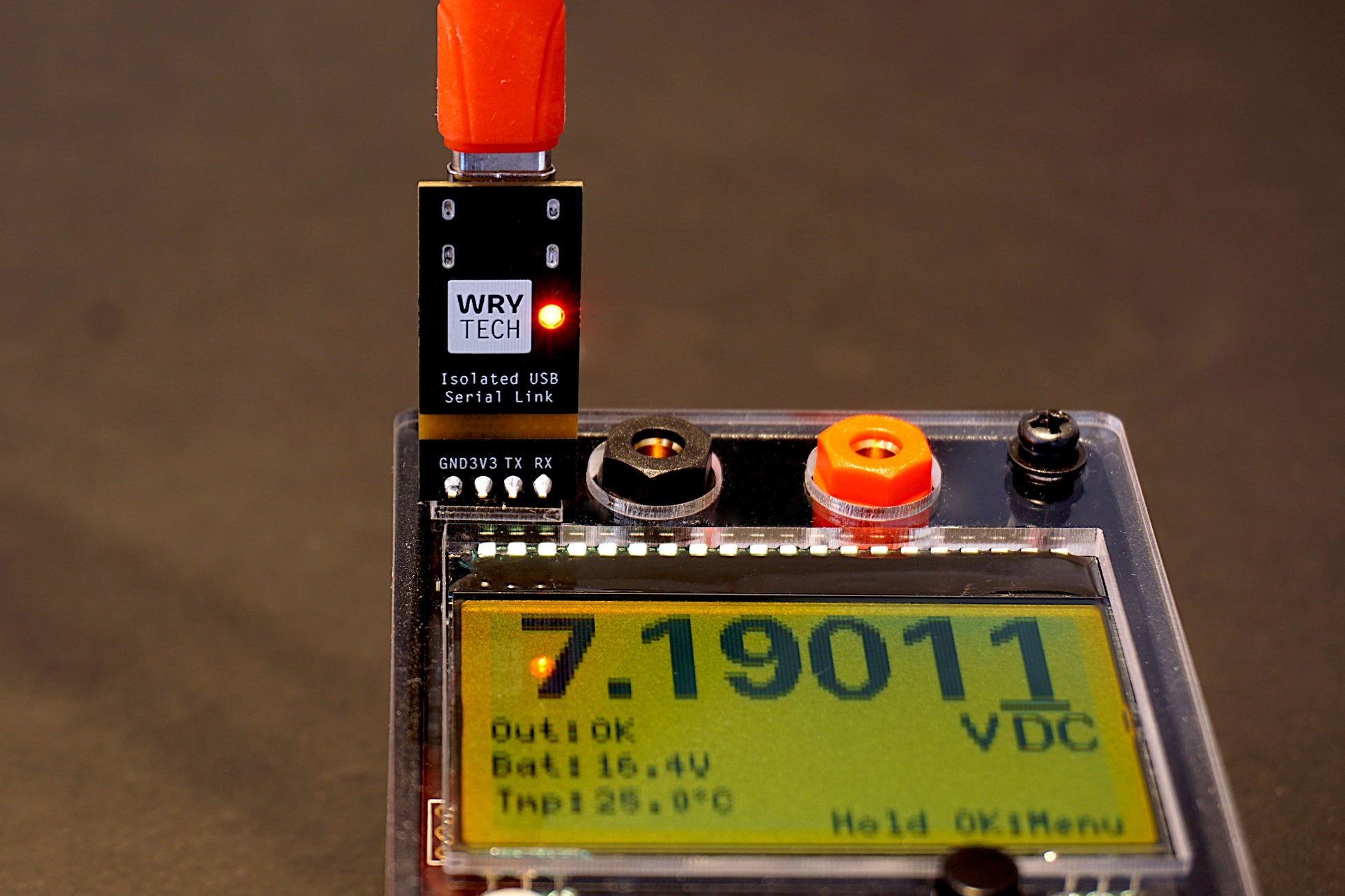

Simplify access to the PDVS 2 Mini via serial connection with the IUSL.

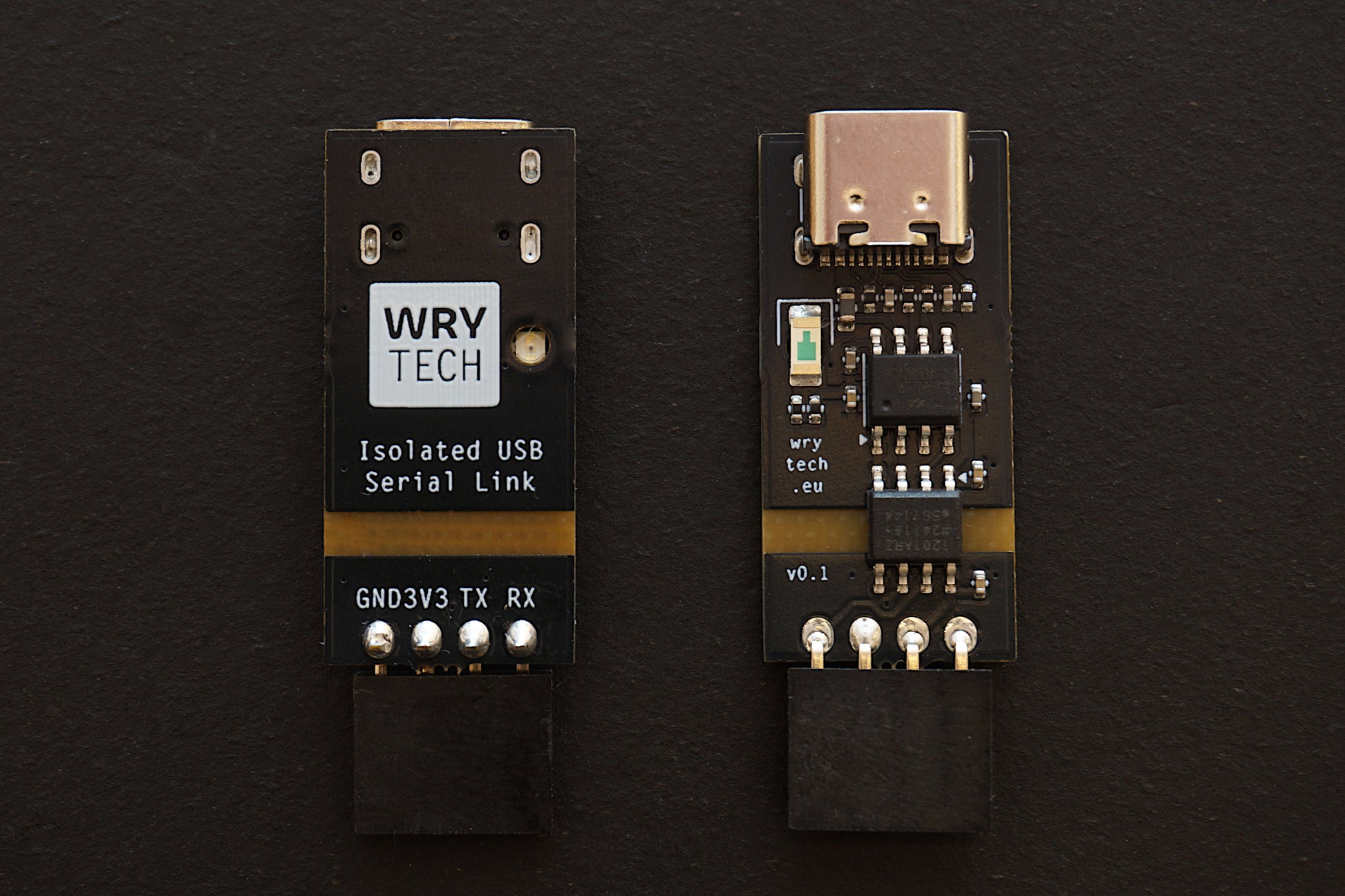

Connector pinout matches the PDVS 2 Mini directly without the need for jumper cables or similar. USB-C for connection to host device on the other side. Galvanic isolation between host and PDVS 2 Mini via included digital isolator to minimize electrical noise transferred.

For v2 units:
Version 2 PDVS 2 Minis support baud rates up to 230400 and are delivered with matching firmware.

For v1 units (legacy):
Supports baud rates up to 115200, as enabled in firmware version 1.2, available for download under the Resources tab. Version 1.2 is also fully compatible with earlier (pre‑v1.6) non‑wrytech PDVS 2 Mini units.

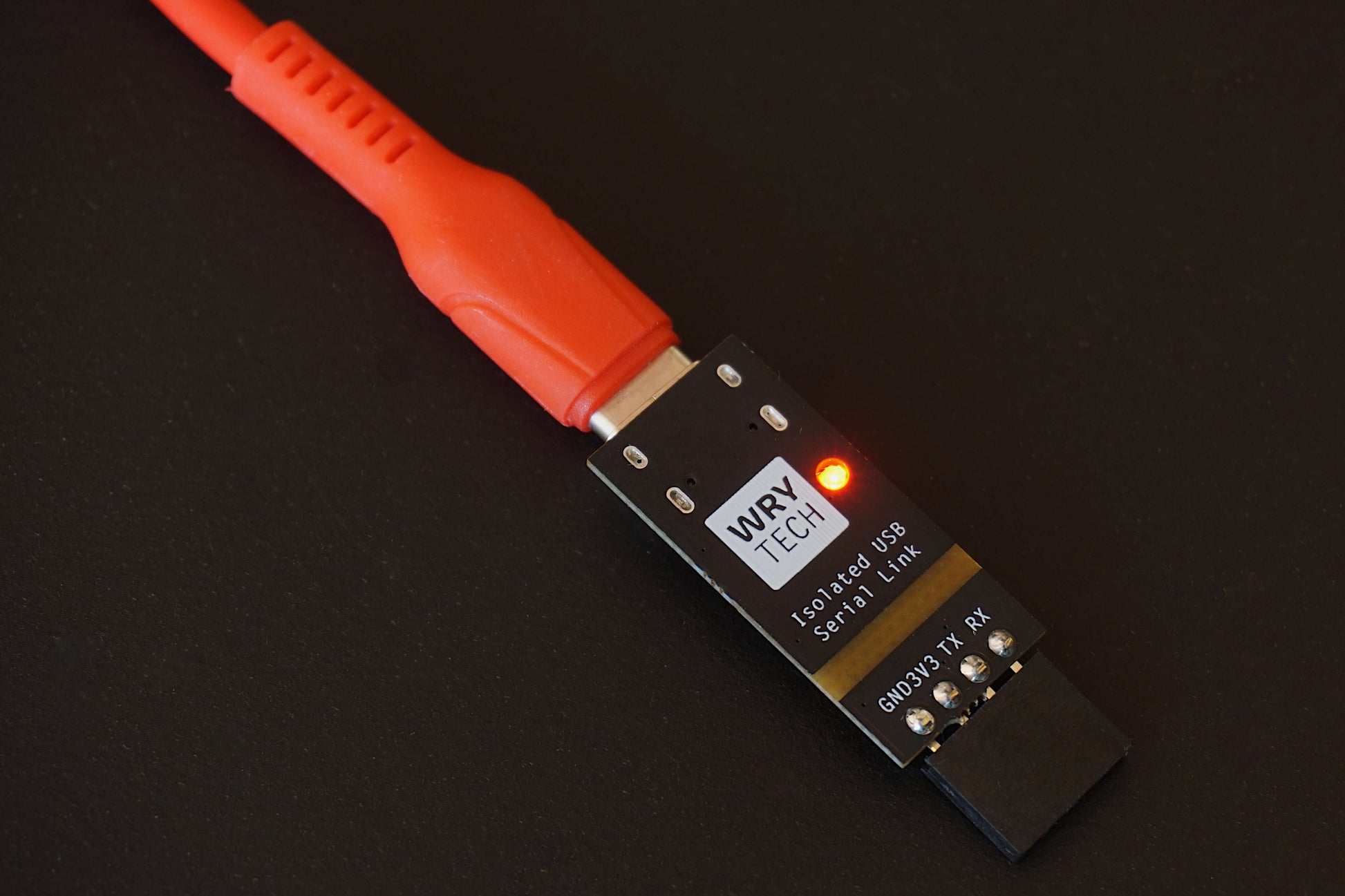

38.5x3.5 mm size, red LED to indicate power is provided by USB

Tested on current Windows and Mac machines as well as recent Android and iOS versions, no additional drivers required.

While it can also be used for other applications requiring an isolated serial adapter, extensive testing has not been conducted in these scenarios. Preliminary tests indicate functionality may only be reliable at lower baud rates for certain devices.
